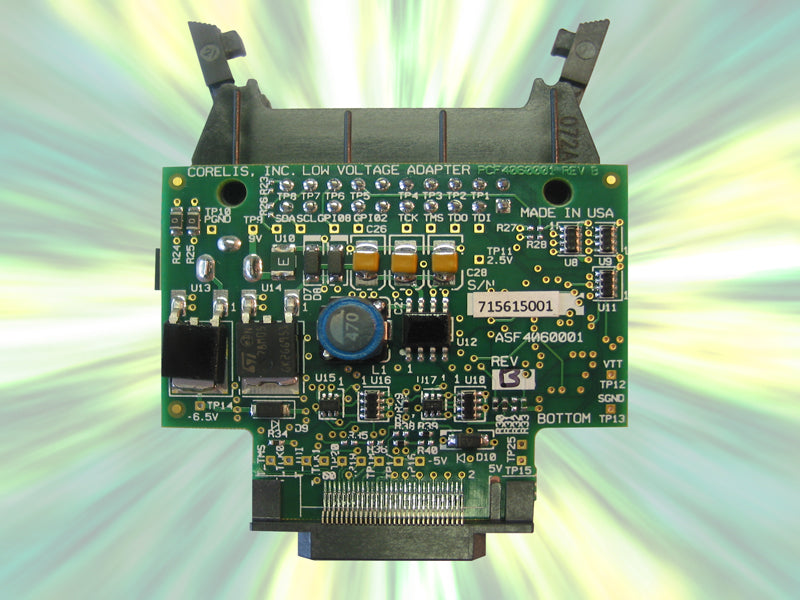

The Low Voltage Adapter provides the electrical and mechanical interface needed to connect a Corelis boundary-scan controller to a high density 60-pin Intel XDP (eXtended Debug Port) connector (Samtec BSH-030-01). The XDP port runs at about 1.0V and has 51 pullup/pulldown termination so the Low Voltage Adapter also provides the appropriate level translation and current drive capability. If the target UUT has an Intel XDP connector the user will need a Low Voltage Adapter to access the scan chain.
