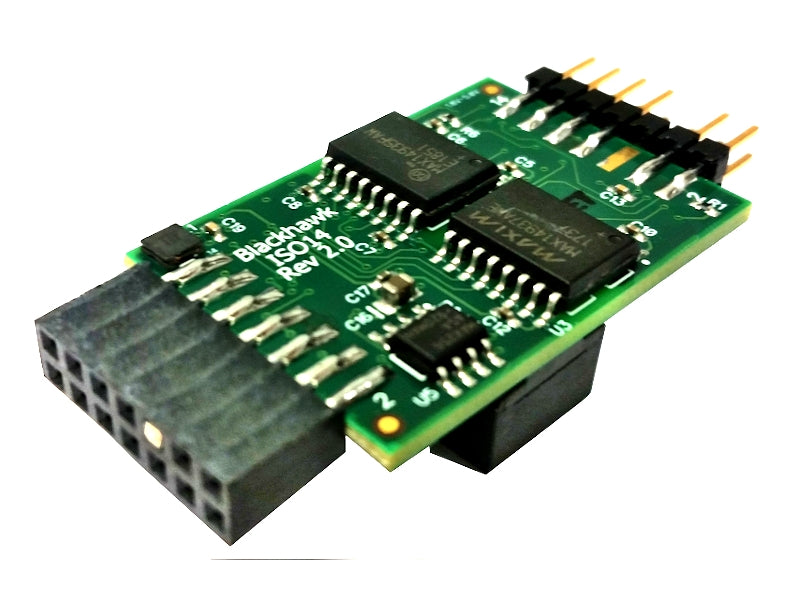

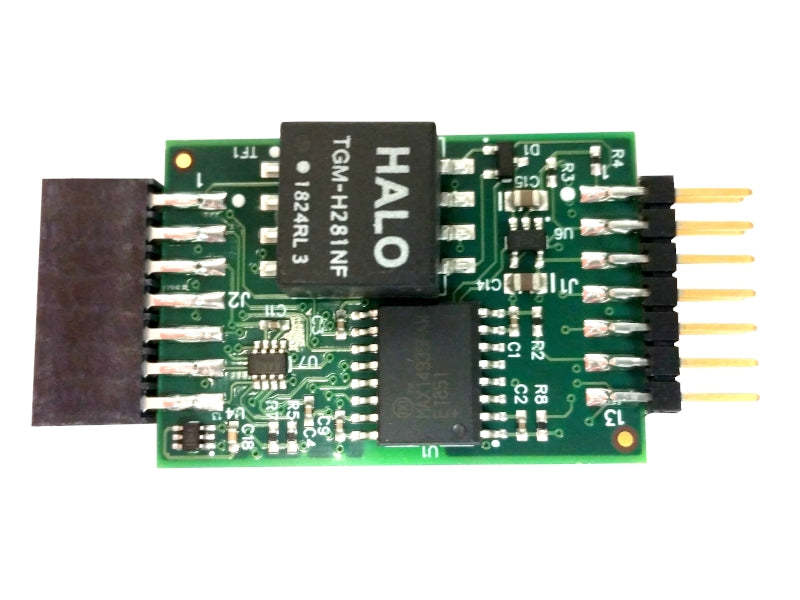

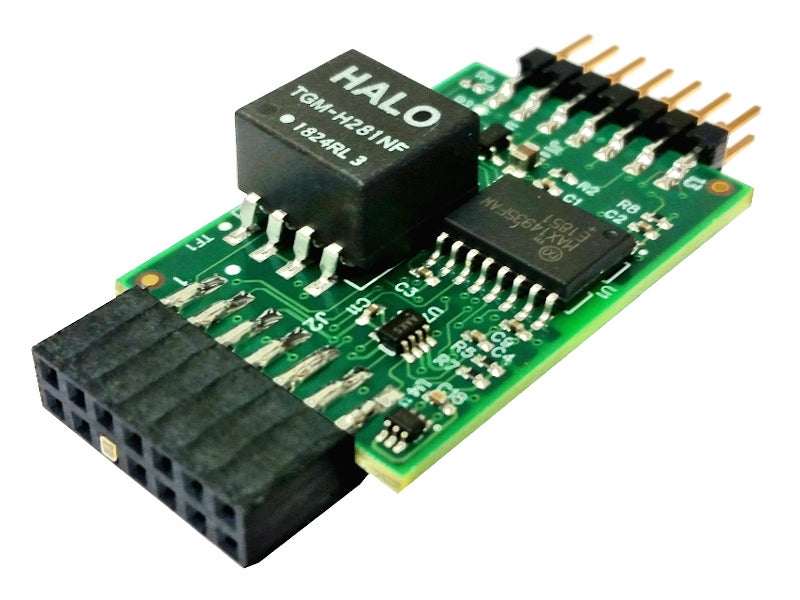

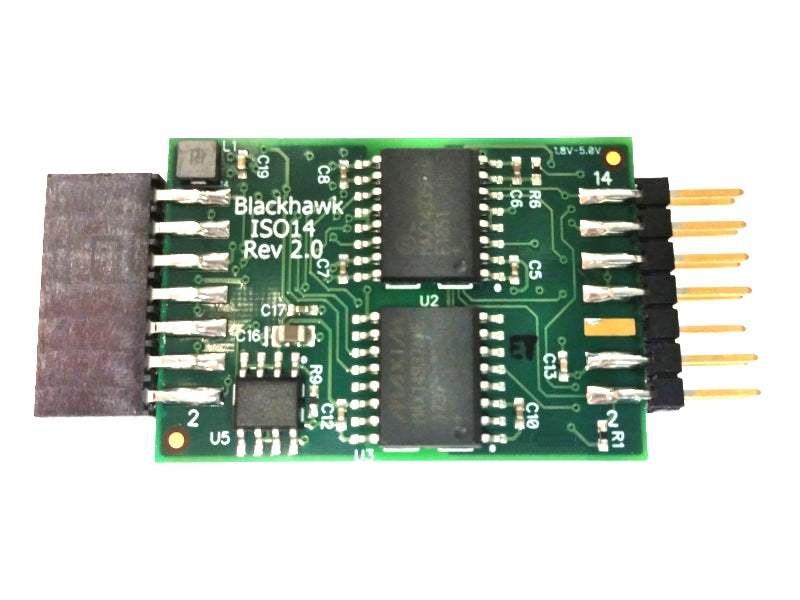

The Blackhawk 14-pin Isolation Adapter provides galvanic isolation protection between your JTAG Emulator and target board. The adapter board connects between your JTAG Emulator and the JTAG connector on your target board. The adapter is designed to minimize and protect connected devices (PC/Emulator/Target) from ground loop voltage, harsh environments and new, untested designs. The Isolation Adapter supports 1.8-5.0 volt targets and is available with a standard TI 14-pin connection.
FEATURES
- Supports I/O voltages of 1.8V/3.3V/5.0V targets
- Works with any XDS100v2, XDS110, XDS200, XDS510, XDS560 or XDS560v2-class emulator
- Withstands ±10kV Surge per IEC 61000-4-5
- High Speed operation: up to 20MHz TCK
- Powered by target board's JTAG pin 5 (TVD)
- Current consumption is 60-80mA nominal (100mA max)
- Digital Isolators Used: MAX1493x.
BENEFITS
- Protects your investment in equipment (computer, emulator, etc.)
- 5K Vrms Galvanic Isolation
- PCB isolation clearance and creepage distance of 6mm
- No performance degradation as usually found in isolation products
- Transferable - not locked to an emulator or target
- Powered from target board - no extra, or external power supply needed
- Compact, easy to install and use - no configuration needed
SYSTEM REQUIREMENTS
- XDS100v2 thru XDS560v2-class Emulator with TI standard 14-pin connector.
- Target Board with with TI standard 14-pin connector - a pin converter can be used.
- 1.8/3.3/5.0 volts on JTAG pin 5 (TVD) with up to 100mA current to power the adapter components
